rudder feedback
- Product Code: rudder feeback
- Availability: In Stock
$60.00
- Ex Tax: $60.00

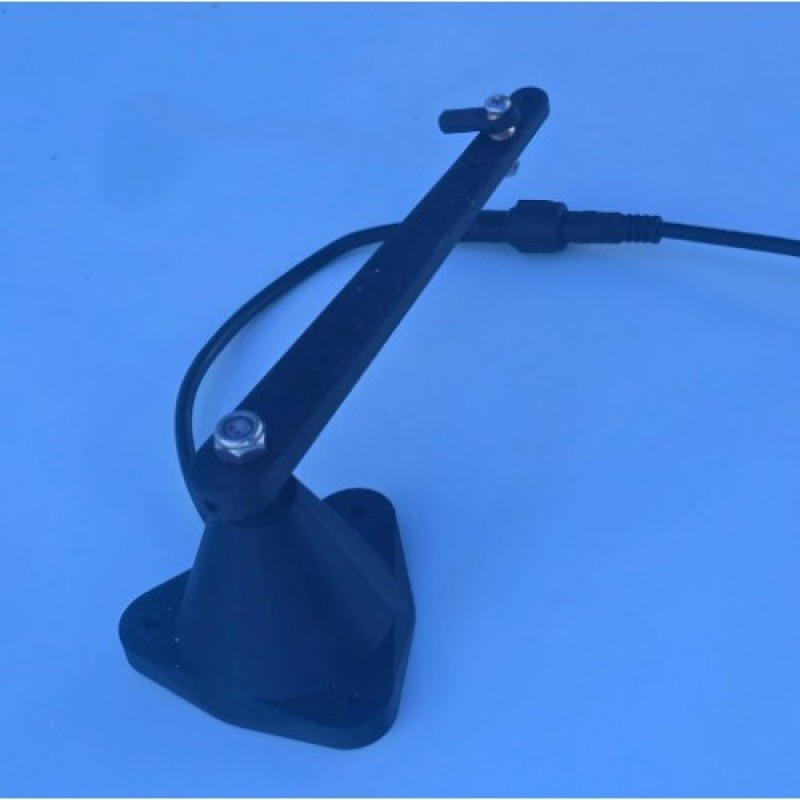

rudder feedback sensor
angular non-contact hall sensor. Superior to potentiometer.
precision of 0.1 degrees
potted waterproof design
delrin bushings
3 wire analog output compatible with pypilot motor controller
2x 3mm ball sockets.
Connect to rudder motion with 3mm threaded rod, or 3mm threads (not included)
This is an improved design with less play.
The 3 wire sensor takes 5 volt power and produces a changing voltage proportional to the angle measured.
Connect to rudder motion with 3mm threaded rod, or attach threads to a tube, or glue a tube to the sockets.
