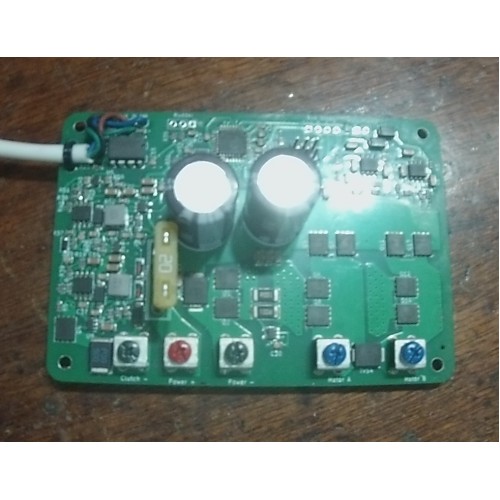

pypilot controller 15 amp

Controller for larger mechanical drives or smaller hydraulic pumps up to 15 amps continuous output (25 amp peak).

This controller supports 2x the power of the regular motor controller.

    overtemperature, overcurrent (stall) detection
    fuse and reverse polarity protection
    voltage, current, temperature and rudder feedback
    optional port/starboard end of travel input switches
    Serial communication with optical isolation, prevent ground loops and other electrical problems
    Waterproof 4 pin connection to autopilot computer (serial communication)
    Optional motor/pump temperature sensor.
    Modular design, arduino based, open source software
    Dimensions 104x70x25 mm
    clutch output, supports pwm setting (reduces current needed to hold clutch on)
    supports 12 and 24 volts
