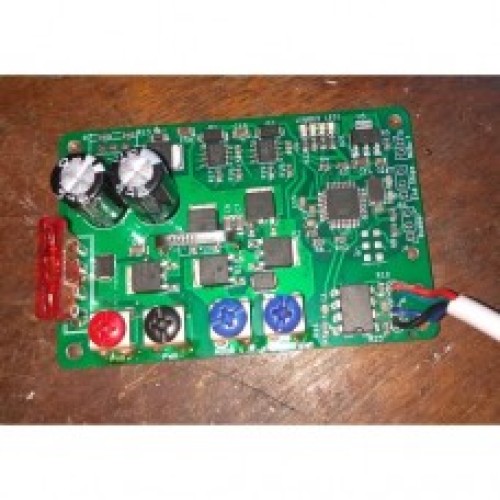

pypilot motor controller 7 amp

This motor controller can be used to drive a brushed motor to move the rudder.

    can drive most existing autopilot drive units such as tillerpilot and wheel pilot
    overtemperature, overcurrent (stall) detection
    fuse and reverse polarity protection
    voltage, current, temperature monitoring
    optional rudder feedback
    optional port/starboard end of travel input switches
    serial communication with optical isolation, prevent ground loops and other electrical problems
    waterproof connector to serial communication.
    modular design, arduino based, open source software

I offer options for rudder feedback and end stop switches with waterproof connectors, however you may simply solder yourself wires to the circuit board for these which are l\
abeled. These are both optional

I can also add a waterproof connector with 10k NTC sensor for the optional motor temperature, but you can also easily solder yourself. The controller itself has a temperatur\
e sensor.

datasheet

Suitable drive units:

    tiller pilots wired directly to the motor, tested: autohelm, simrad tp22/tp32, tillermaster, marinepilot 1600
    Wheel drive units tested: Raymarine ST4000+ MkII Wheel Drive
    Any suitable rudder drive unit drawing up to 7 amps and stall up to 15 amp, including windshield wiper motors. Direction of travel must be reversed with polarity

This controller needs to be paired with a suitable autopilot computer such as tinypilot or openplotter running pypilot.

schematics

The optional clutch output is not usually needed because most tillerpilots and wheelpilots must be engaged manually.
